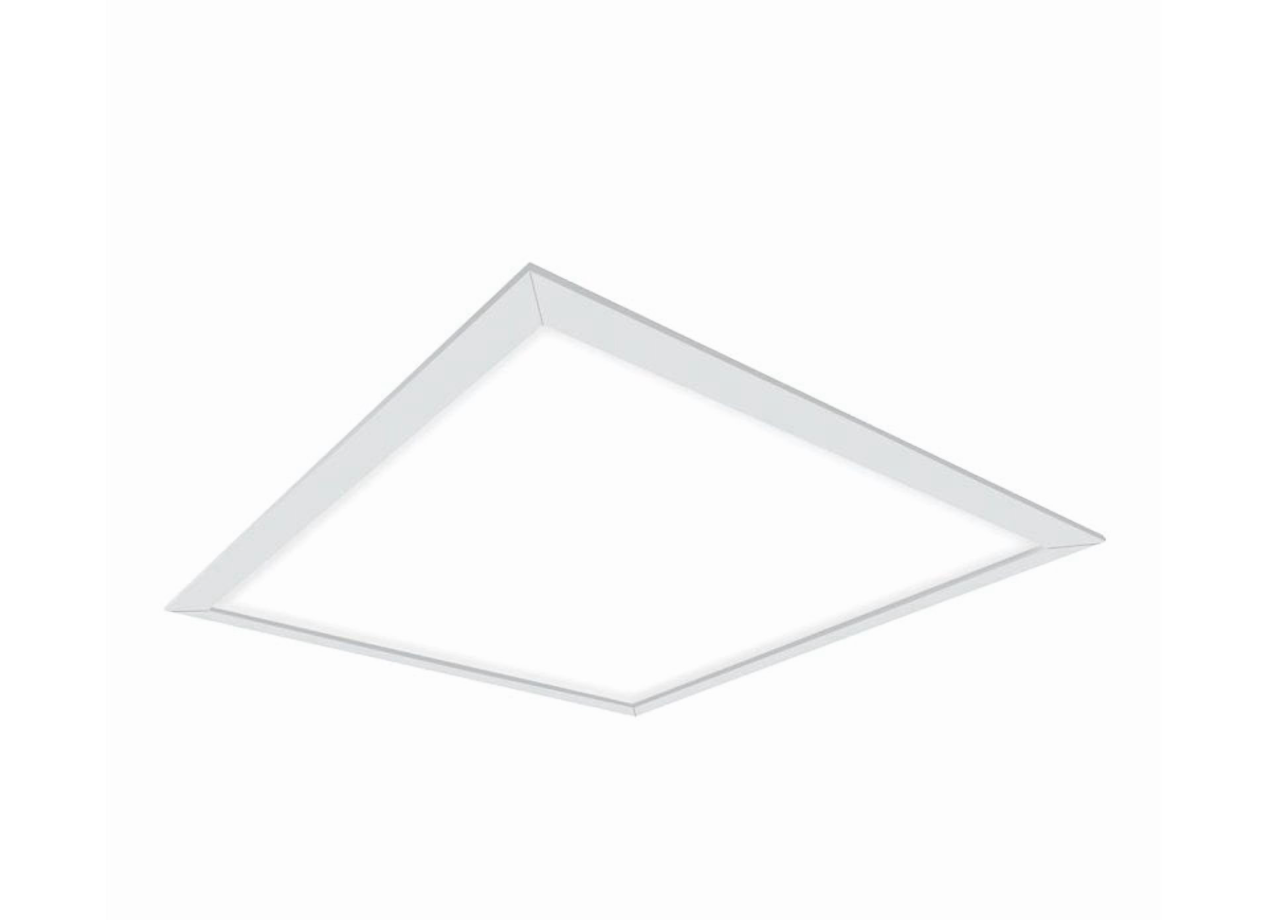

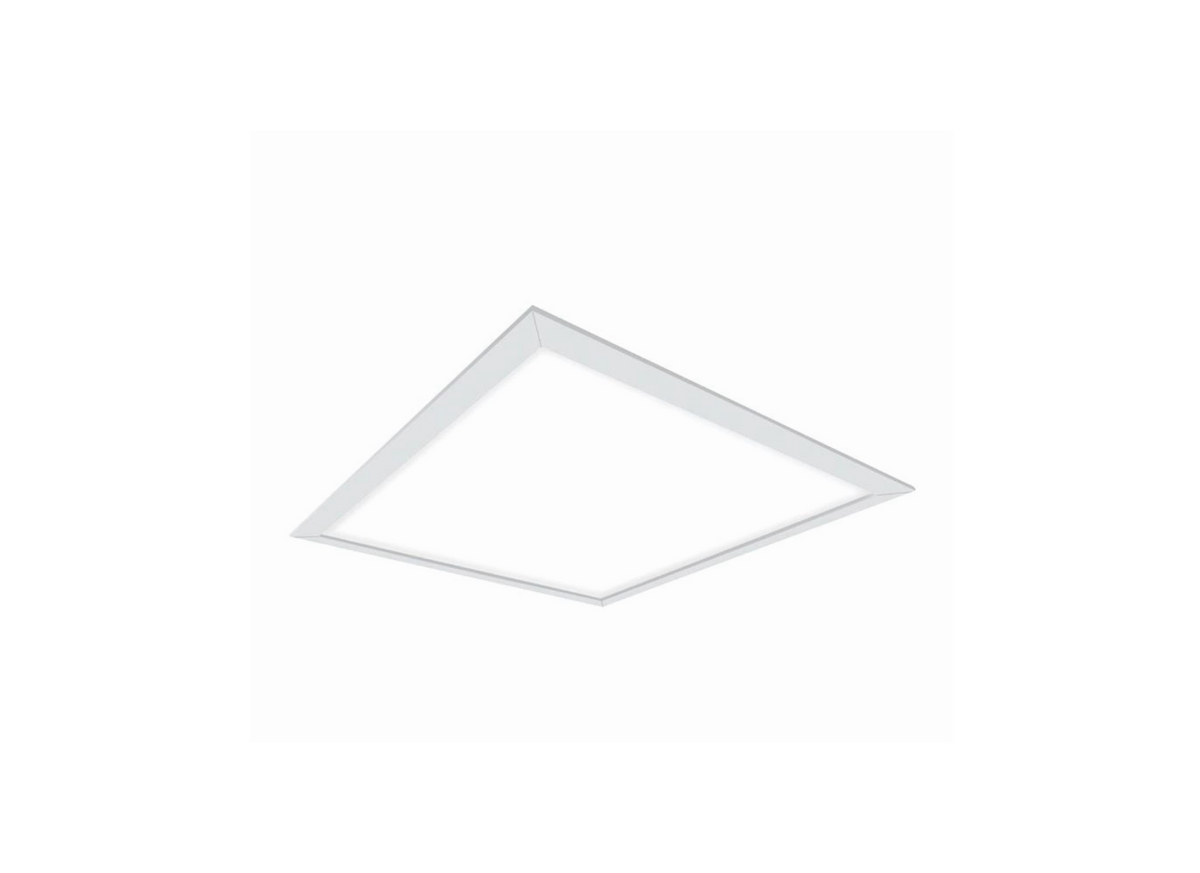

Metalux 22CGFP3540C 2x2 LED Flat Panel Light 4000K Cool White, 3400+ Lumens, 0-10V Dimmable, 120-277V

Upgrade your lighting with the Metalux Cooper Lighting 22CGFP3540C 2x2 LED Flat Panel Light, a low-profile commercial LED ceiling fixture designed to deliver bright, uniform illumination in standard T-grid drop ceilings. Part of the Metalux CGFP Series by Cooper Lighting Solutions, this fixture provides more than 3,400 lumens of 4000K Cool White light through a smooth white frosted lens for comfortable, evenly distributed illumination.

With an ultra-shallow 2-1/8-inch profile, universal 120-277V operation, and 0-10V continuous dimming, this 2x2 LED flat panel is especially well suited for shallow plenum installations. It provides an energy-efficient LED alternative to traditional fluorescent fixtures for offices, classrooms, retail spaces, commercial buildings, and residential basements.

Why You'll Love the Metalux 22CGFP3540C LED Flat Panel

• Standard 2x2 LED flat panel light
• Delivers more than 3,400 lumens
• 4000K Cool White color temperature
• 80+ CRI for clear and consistent color appearance
• 0-10V continuous dimming down to 10%
• Universal 120-277V AC operation
• Ultra-shallow 2-1/8-inch profile
• Designed for standard T-grid drop ceilings
• Ideal for shallow plenum spaces
• Smooth white frosted lens for uniform illumination
• LED replacement for applications using up to 3-lamp T8 fluorescent fixtures
• Durable post-painted steel housing
• Aluminum mitered corners
• Integral grid clips for secure installation
• Rated for up to 50,000 operating hours
• UL Certified
• Damp Location Rated
• FCC compliant
• Title 24 suitable

3,400+ Lumens of 4000K Cool White Light

The Metalux 22CGFP3540C produces more than 3,400 lumens of bright, uniform illumination, making it an excellent choice for spaces that require dependable overhead lighting.

Its 4000K Cool White color temperature provides a clean, neutral-cool appearance suitable for professional environments, work areas, classrooms, retail spaces, and general-purpose lighting.

With an 80+ CRI, the fixture provides consistent color clarity while the smooth white frosted lens helps distribute light evenly throughout the room.

0-10V Continuous Dimming

Built-in 0-10V dimming capability allows greater control over room brightness when the fixture is connected to a compatible dimming system.

Lighting can be continuously adjusted down to approximately 10%, providing flexibility for spaces that require different illumination levels throughout the day.

This feature makes the panel particularly useful for offices, classrooms, conference rooms, retail environments, and other commercial applications where adjustable lighting is beneficial.

Energy-Efficient T8 Fluorescent Replacement

This Metalux LED flat panel provides a modern alternative to traditional fluorescent ceiling fixtures.

It is designed to replace applications using up to 3-lamp T8 fluorescent fixtures, including configurations rated around 96W, while providing efficient integrated LED illumination.

The LED system is rated for up to 50,000 operating hours, helping reduce the need for frequent lamp replacement compared with traditional fluorescent lighting.

Ultra-Shallow 2-1/8" Profile

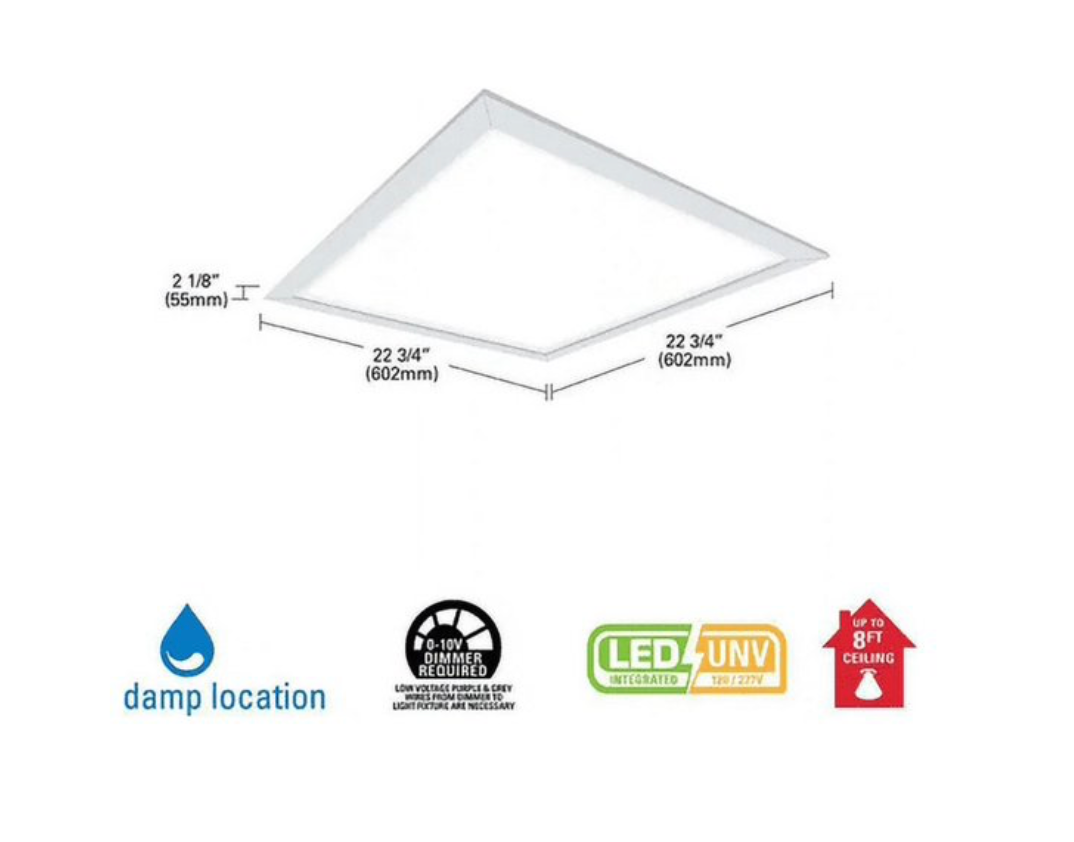

With actual dimensions of approximately 22-3/4" L x 22-3/4" W x 2-1/8" H, the Metalux CGFP features an ultra-shallow construction designed to fit cleanly into standard 2x2 T-grid ceiling systems.

Its compact depth makes this 2x2 LED ceiling panel especially useful for installations with limited space above the ceiling.

The low-profile design also provides a clean, modern appearance compared with deeper traditional fluorescent troffers.

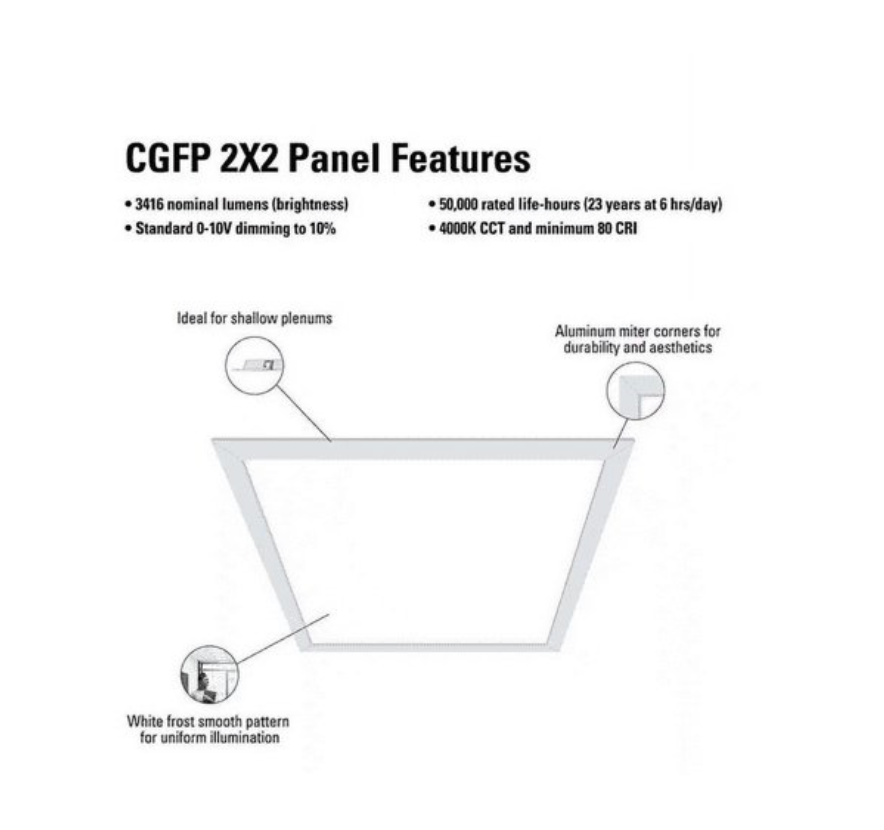

Durable Commercial Construction

The fixture features a lightweight post-painted steel housing combined with aluminum mitered corners for dependable commercial use.

Integrated grid clips help secure the fixture when installed in a compatible T-grid ceiling system.

Its construction and performance ratings make it suitable for a variety of commercial, institutional, and compatible residential applications.

Product Details

Ideal for Commercial & Residential Applications

The Metalux 22CGFP3540C 2x2 LED Flat Panel is a versatile lighting solution for spaces such as:

• Offices
• Conference rooms
• Classrooms
• Schools
• Retail stores
• Commercial buildings
• Professional workspaces
• Hallways and common areas
• Residential basements
• Drop ceiling installations
• Shallow plenum spaces
• Fluorescent lighting upgrades

Package Contents

• One (1) Metalux Cooper Lighting 22CGFP3540C 2x2 LED Flat Panel Light
• Integrated LED lighting system
• Integral grid clips
• Components included with the original manufacturer package

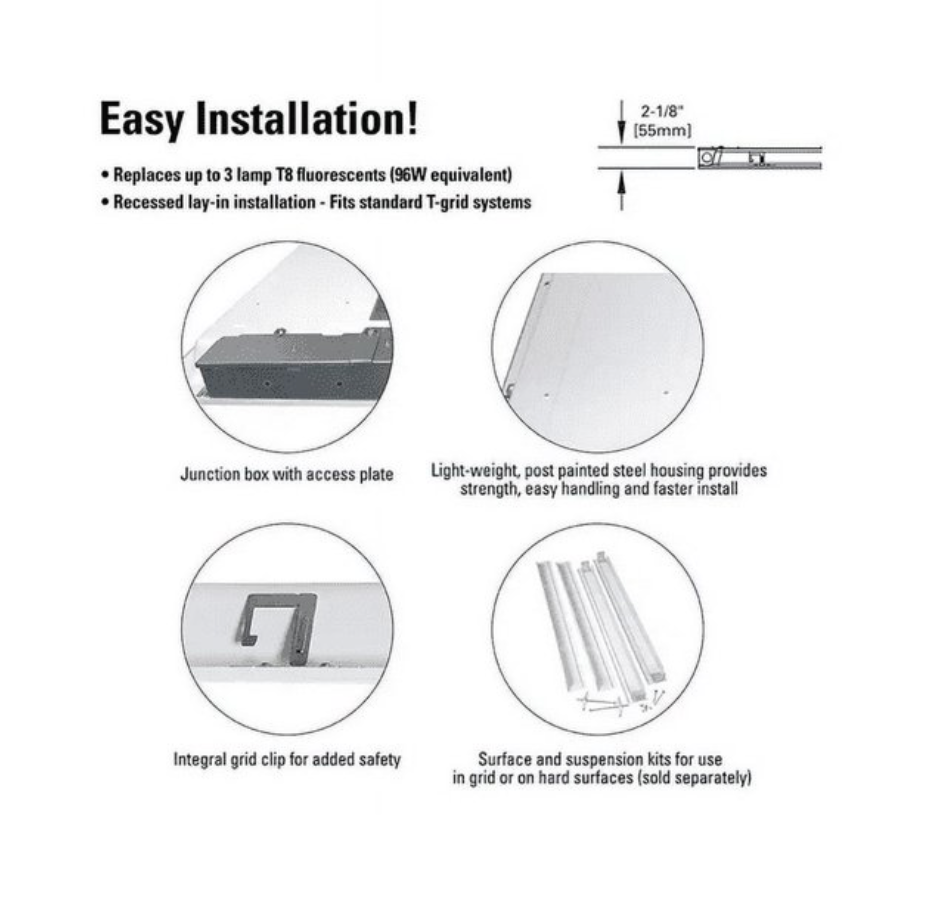

Installation

This LED flat panel is designed for installation in compatible standard T-grid drop ceiling systems.

The ultra-shallow 2-1/8-inch profile makes it especially suitable for applications where available plenum space is limited.

When using the dimming function, the fixture must be connected to a compatible 0-10V dimming system.

Always verify ceiling dimensions, electrical requirements, available clearance, and dimming compatibility before installation. Installation should follow the manufacturer's instructions and all applicable electrical and building codes.

Important Information

• Designed for compatible 120-277V AC electrical systems.
• 0-10V dimming requires a compatible dimmer and appropriate wiring.
• Verify T-grid ceiling dimensions and available plenum clearance before installation.
• Rated for up to 50,000 operating hours under specified operating conditions.
• Damp Location Rated; verify compatibility with the intended installation environment.
• Fluorescent replacement and energy comparisons may vary depending on the existing lighting configuration.
• Always refer to the original manufacturer documentation for the most current specifications, installation instructions, certifications, warranty information, and safety requirements.
• Disconnect electrical power before installation or servicing.
• Professional installation may be required according to local electrical codes.
• Packaging may vary slightly due to manufacturer packaging updates.

Upgrade traditional fluorescent lighting with the Metalux Cooper Lighting 22CGFP3540C 2x2 LED Flat Panel Light. Featuring 3,400+ lumens, 4000K Cool White illumination, 0-10V dimming, 120-277V universal voltage, and an ultra-shallow 2-1/8-inch profile, this commercial LED ceiling panel provides a reliable, low-profile lighting solution for offices, classrooms, retail spaces, basements, and other T-grid drop ceiling applications.
